A Complete Guide to Types of Traffic Signals: From Basics to Smart Systems

Traffic signals are the silent controllers of urban and suburban roadways, orchestrating traffic movement, improving safety, and reducing congestion. From simple red-yellow-green lights to advanced AI-based systems, the world of traffic signals is far more complex than it appears.

In this guide, we’ll explore all types of traffic signals, including the basics covered by industry blogs like Greenlight Traffic Engineering, and expand with advanced, specialized, and often-overlooked systems that are shaping modern mobility.

Client Satisfaction

0 %+

Years Experience

0 +

Completed Projects

0 +

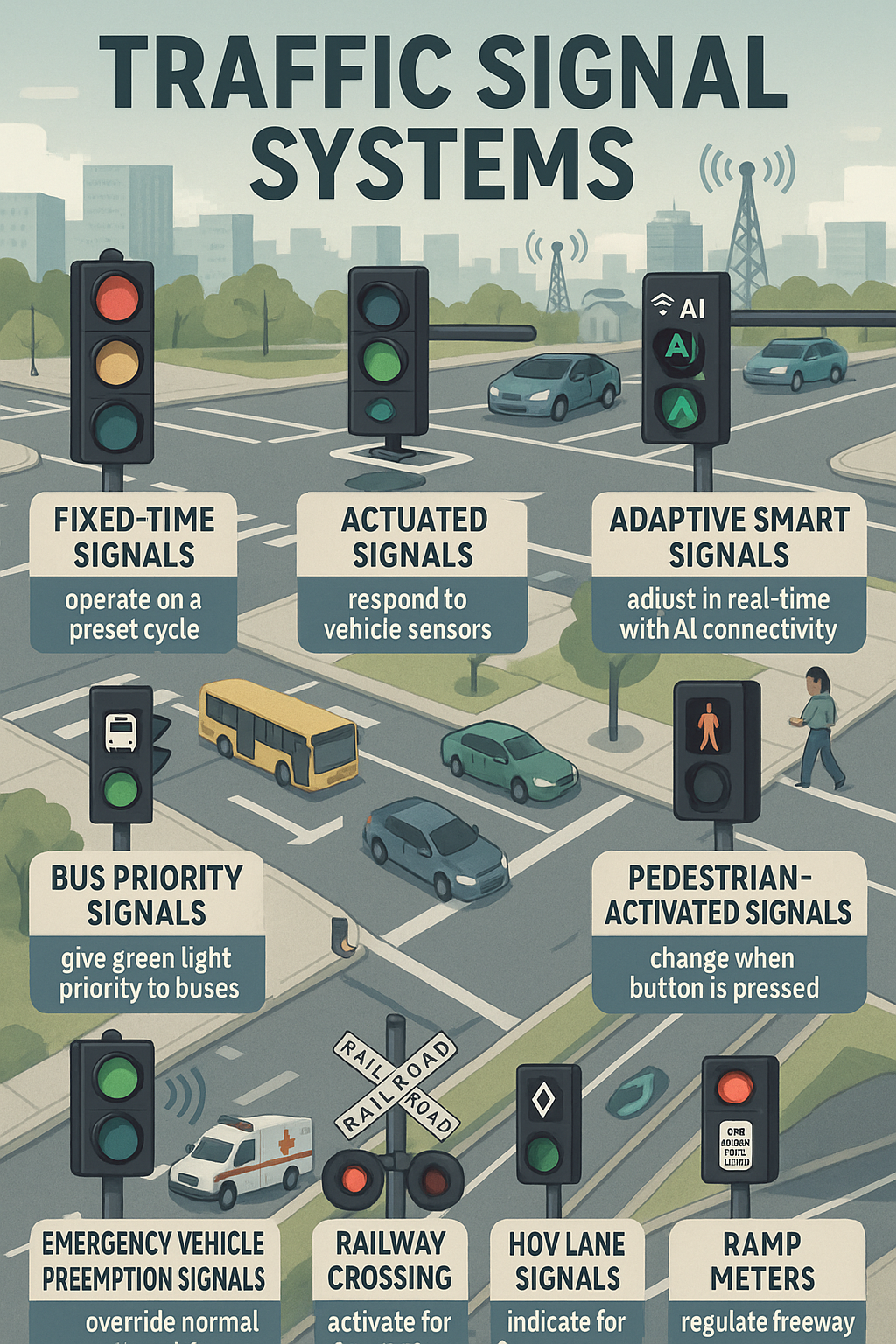

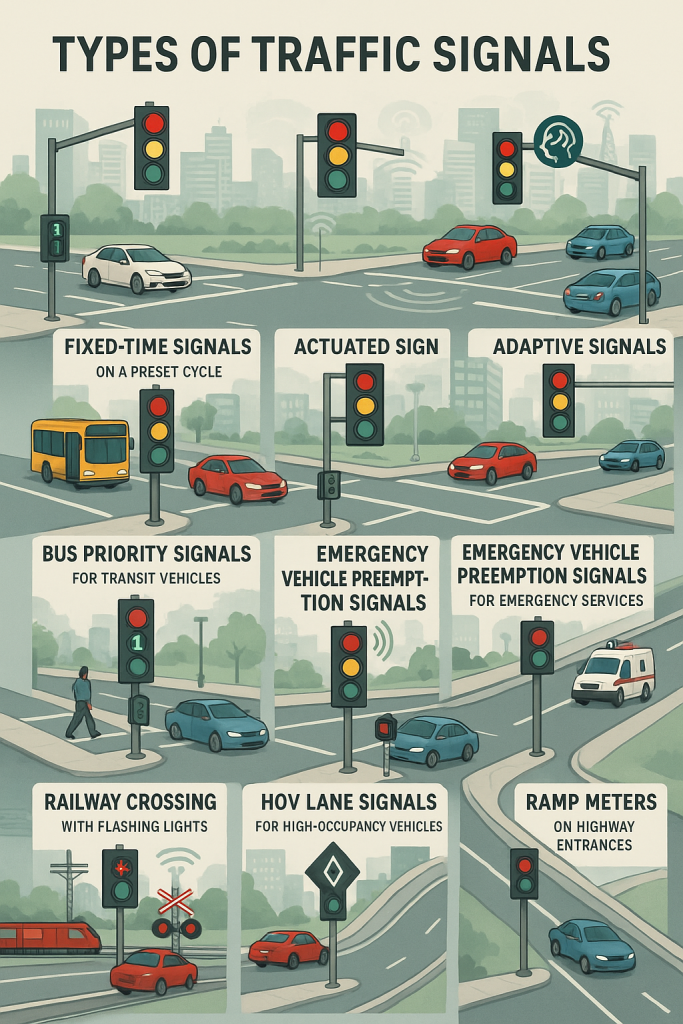

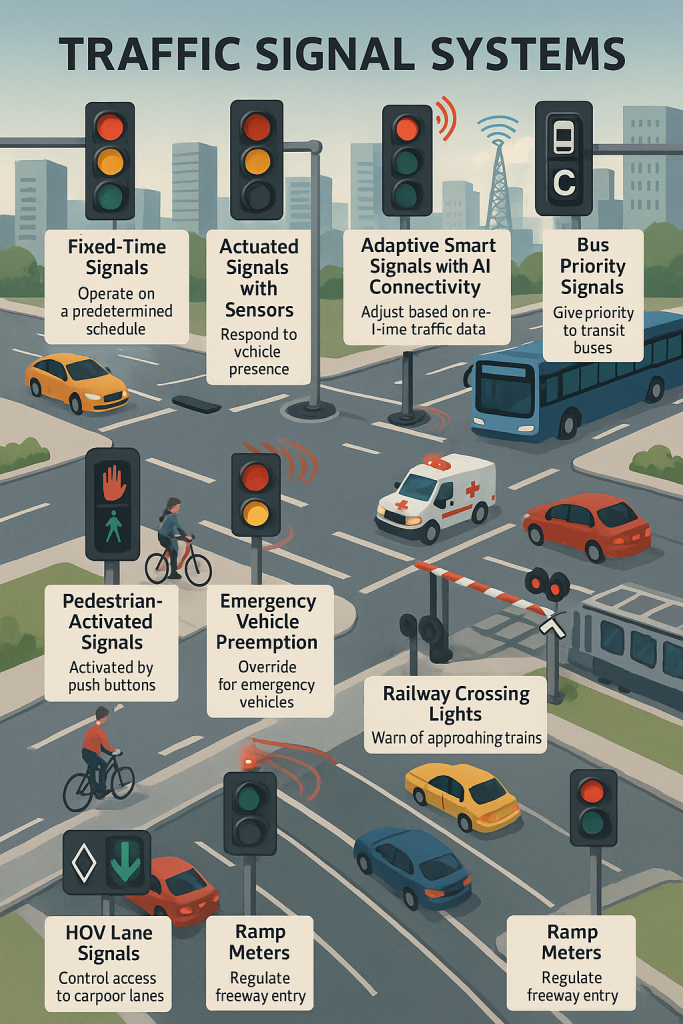

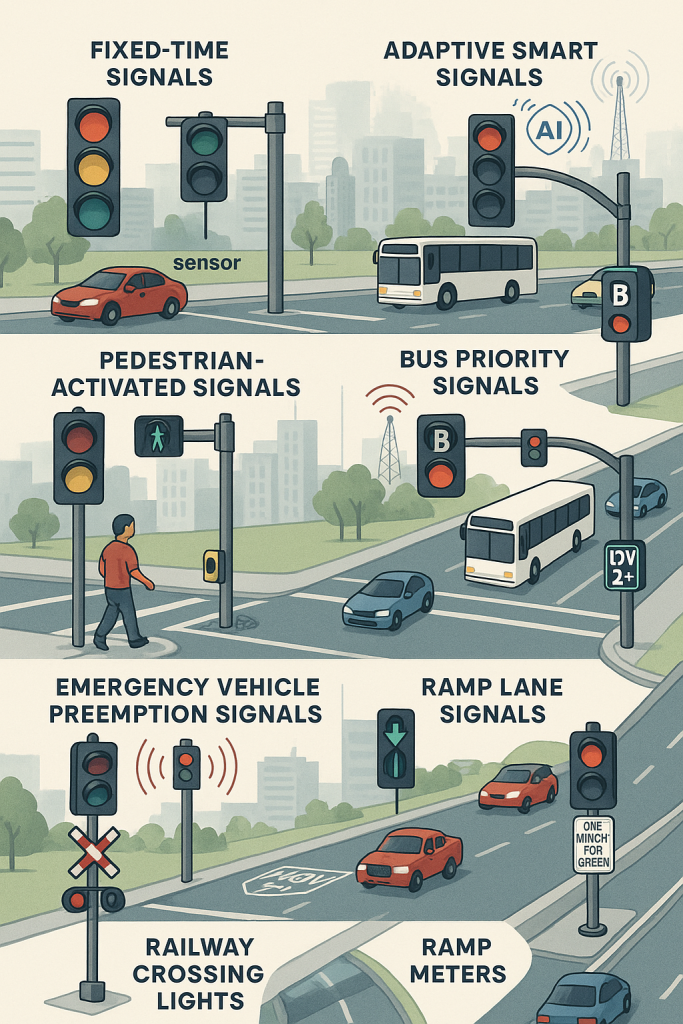

Fixed-Time Traffic Signals

These are pre-programmed signals that operate on a set schedule, regardless of actual traffic flow. They’re suitable for areas with predictable traffic patterns.

Key Features:

Pre-Timed Traffic Signals

Similar to fixed-time, but they allow manual adjustment based on time of day (morning/evening rush). These are ideal for business districts or commercial areas.

Actuated Traffic Signals

These are responsive systems that use detectors like loop sensors or cameras to detect vehicles.

Types:

Benefits

Adaptive Traffic Control Systems (ATCS)

These systems use real-time data from traffic cameras, sensors, and other smart devices to adjust signal timings on the go.

Examples:

Smart Signals

Powered by AI and IoT, smart signals analyze real-time conditions and optimize performance. They may even communicate with vehicles directly.

Connected Signals (V2I – Vehicle to Infrastructure)

These advanced systems interact with smart vehicles to:

Eco-Friendly Signals

These use solar power, LED lights, and smart energy-efficient systems to reduce the environmental impact of traditional signals.

Pedestrian-Activated Signals

Equipped with push buttons or motion detectors, these signals are designed for pedestrian safety, especially in:

ADVANCED & SPECIALIZED SIGNAL SYSTEMS

These are not typically covered in basic blogs but are crucial in modern traffic engineering.

Bus Priority Signals

Used in cities with public transport focus, these signals prioritize buses at intersections, reducing delays and improving schedule adherence.

Emergency Vehicle Preemption

When emergency vehicles (ambulances, fire trucks, police) approach, these systems automatically override normal signal cycles to provide a green light path.

Railway Crossing Signals

Essential for safety at rail-road intersections, these signas:

Ramp Meter Signals

Small signals installed at highway on-ramps, they control the rate at which vehicles enter to prevent freway congestion.

HOV Lane Signal Control

High-Occupancy Vehicle (carpool) lanes often use separate signal systems to allow or restrict access based on time and traffic density.

FUNCTIONAL SIGNAL

Signal Timing & Coordination (Green Wave)

A green wave is achieved by synchronizing multiple signals to allow a vehicle to encounter consecutive green lights if driving at a specific speed.

Signal Phasing

Involves managing how and when different movements (straight, left, pedestrian) are allowed.

Signal Controller Cabinets

Located near intersections, these metal boxes house the electronics and control logic that operate the traffic signal.

Flashing Beacons

Used in areas requiring driver caution:

Signal Backup Systems

In case of power failure, signals may switch to flashing red mode or rely on battery/generator backups.

Pedestrian Countdown Timers

Show the number of seconds left to cross. They improve compliance and reduce jaywalking.

V2X Communication (Vehicle to Everything)

V2X enables vehicles to communicate with:

Smart Cities & Integrated Mobility

Signals are being integrated into smart city platforms, syncing with:

DESIGN, PLANNING & REGULATORY CONSIDERATIONS

Traffic Signal Warrants

Before installing a new signal, engineers perform a warrant study based on:

Maintenance & Inspection Protocols

Regular inspection and maintenance prevent:

Regional & Cultural Signal Differences

Signal colors, symbols, and sequences may vary globally:

Environmental Impact: Traditional vs Smart Signals

Traditional incandescent bulbs consume more energy and require frequent replacement. Smart signals:

Conclusion

Traffic signals are the backbone of urban mobility from simple time-based lights to ultra-modern smart signals that talk to vehicles. By understanding not only the types but also the technology, planning, and future trends, cities and engineers can build safer and more efficient transportation systems.
